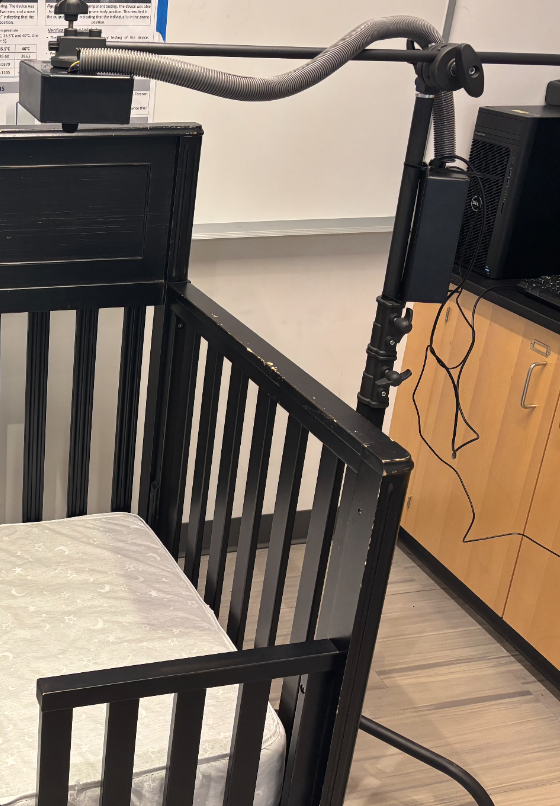

Monitoring Device
- Adjustable height to accommodate multiple crib sizes
- Protected power cord
- Contains depth camera, microcontroller, microphone, and infrared temperature sensor.

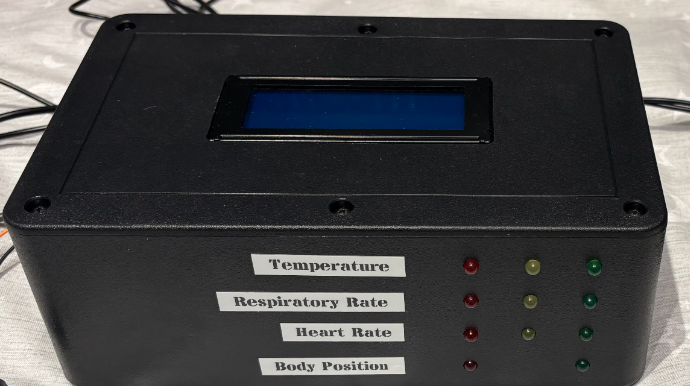

Parent Device
- LCD screen shows vital measurements
- LEDs indicate specific alarm states
- Contains speaker for critical alarms
- Button to mute alarms
Budget
| Item | Company | Quantity | Unit Cost ($) | Shipping Cost ($) | Total Cost ($) |
| WAVE-13461 Contact-Less Infrared Temperature Sensor | Waveshare | 1 | 23.09 | 6.99 | 30.08 |
| Realsense D435 Depth Camera | Intel | 1 | 89.00 | 0.00 | 89.00 |
| KY-038 Microphone Sound Sensor | IndustrialField | 1 | 7.16 | 1.00 | 8.16 |
| Raspberry Pi 4 Model B 8 GB | Vilros | 1 | 75.00 | 6.95 | 81.95 |
| Raspberry Pi 4 Model B 1 GB | Vilros | 1 | 36.25 | 6.95 | 43.20 |
| Standard HD44780 LCD Screen | Adafruit | 1 | 17.95 | 2.73 | 20.68 |
| Stereo Enclosed Speaker Set – 3W 4 Ohm | Adafruit | 1 | 7.50 | 2.73 | 10.23 |
| 10mm LED Emitting Diodes Light Lamp Pack | Gikfun | 1 | 7.98 | 2.50 | 10.48 |
