Prototype

Resistance Glove with the H.O.M.E. App

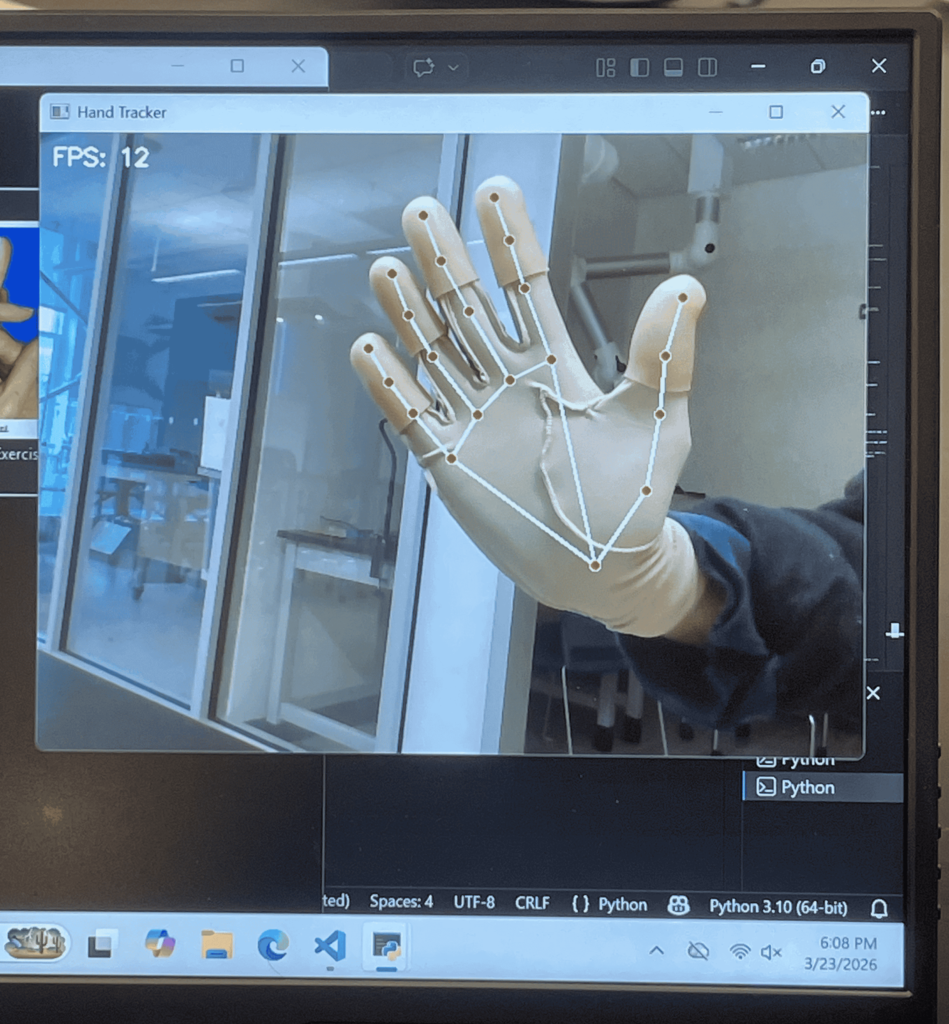

Palm of hand with beige glove with Google Mediapipe Landmarkers overlay showing 21 points on the hand.

The current Resistance Glove has the finger caps to prevent the fabric from pulling on the hand. Guide and end clips are sewn onto the back of the glove for rubber bands to be attached for resistance training.

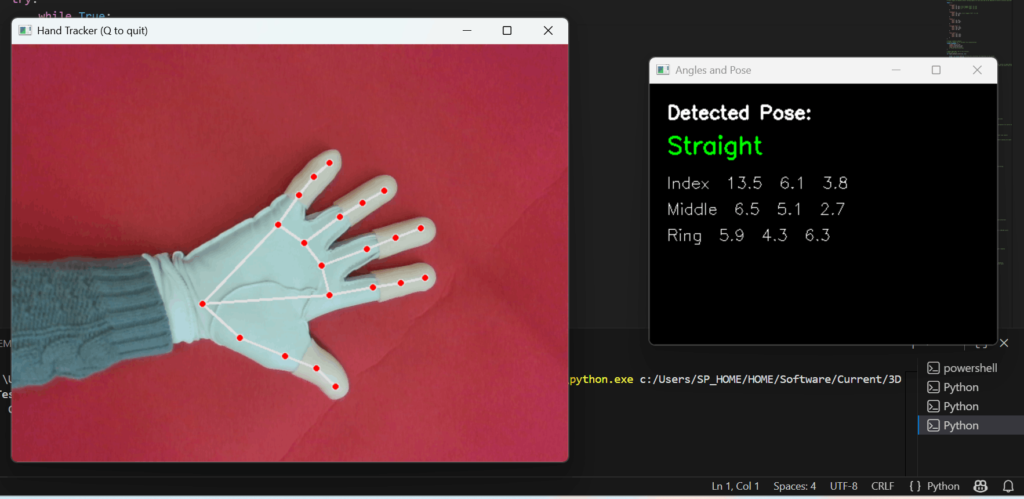

The glove being used for the resistant component of the device can be identified by Google’s Mediapipe Hand landmarkers, and show angles. Pose detection still needs corrections.

Cropped screenshot of camera and UI output reporting a straight pose with a gloved hand.

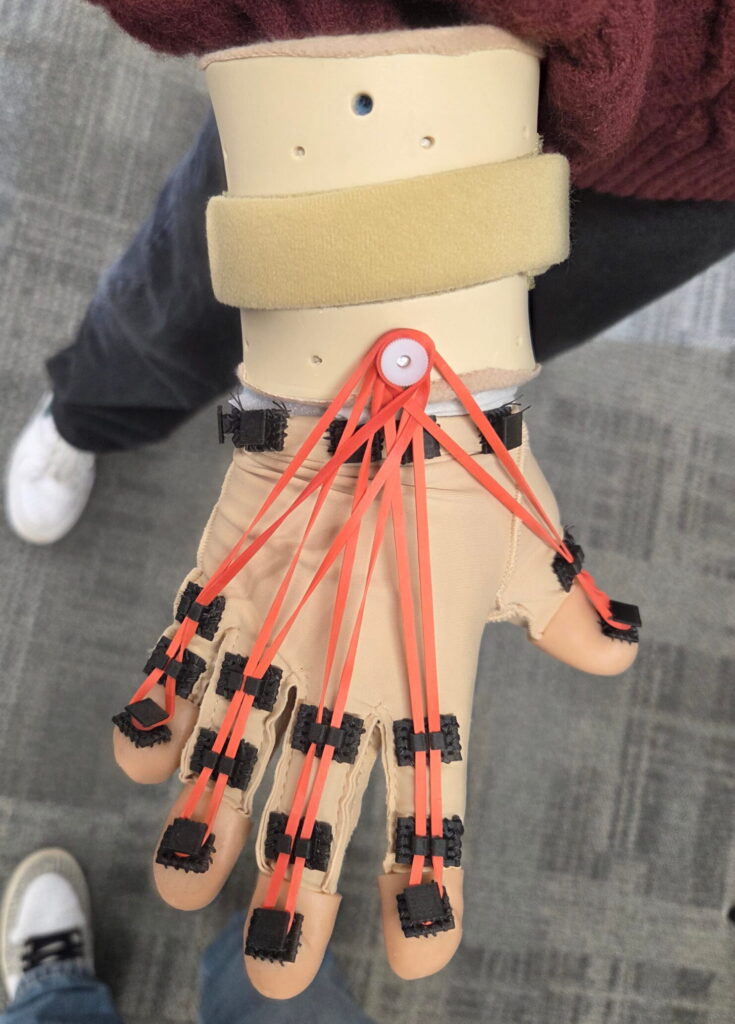

Opened hand with resistance glove component. With red rubber bands on each finger.

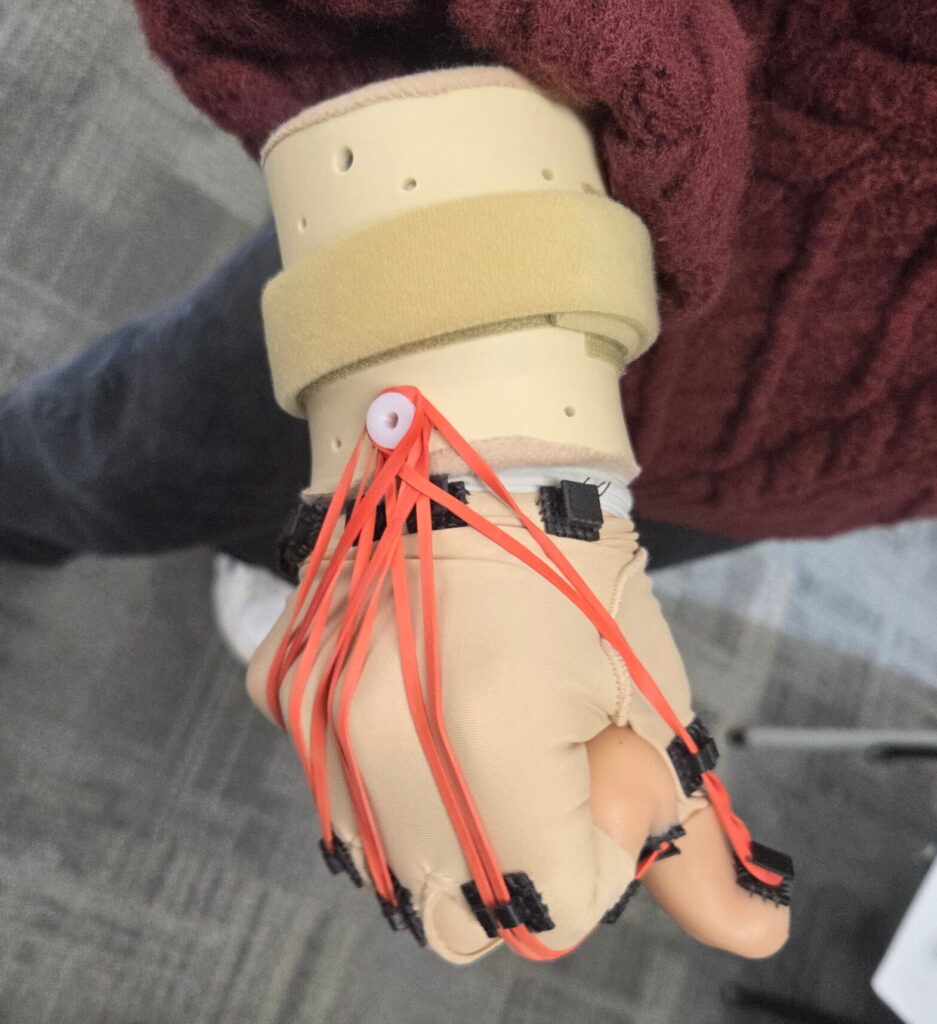

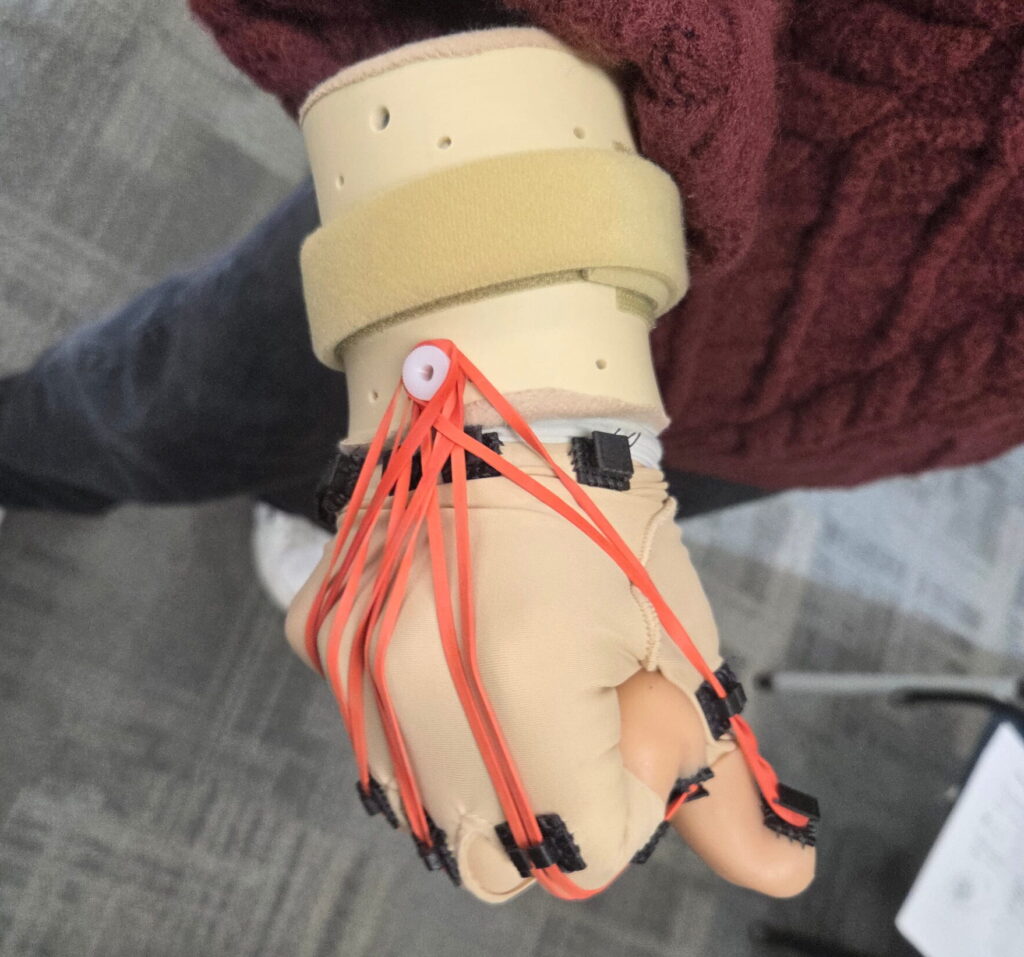

Closed fist hand with resistance glove component. With red rubber bands on each finger.

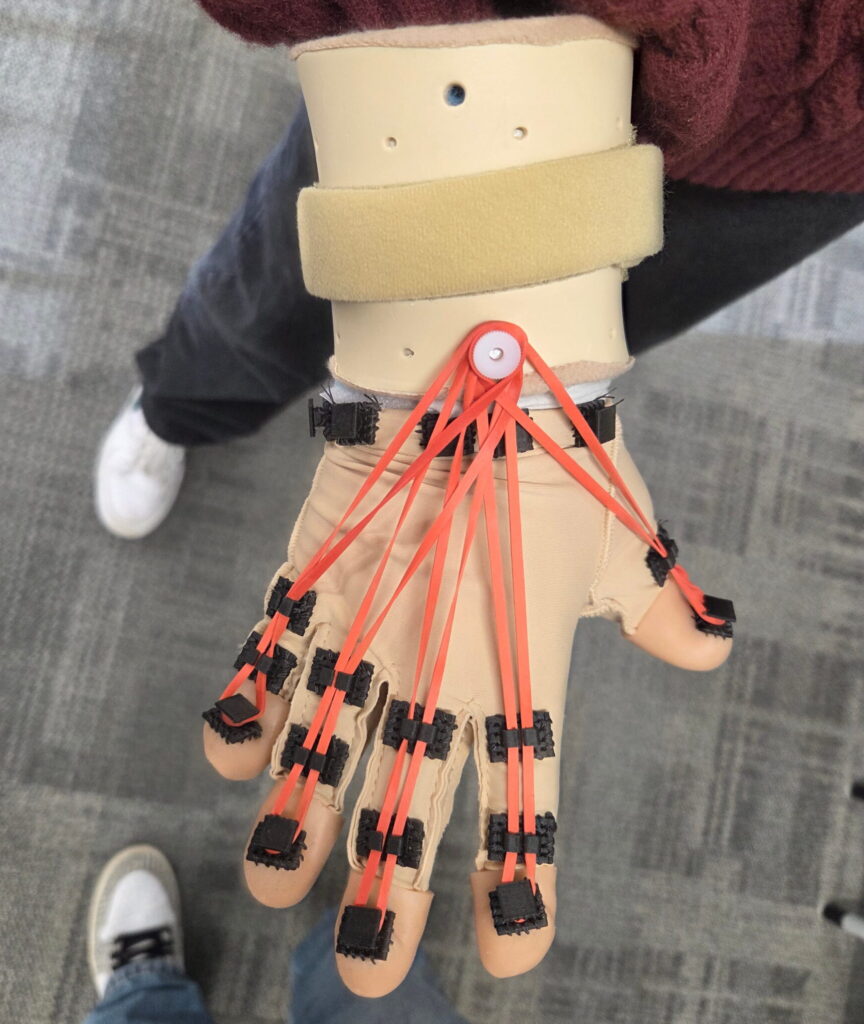

The resistance glove with an adjustable wrist component to act as a rigid boundary for the rubber bands. Special thanks to Ali at Mercer-Bucks Orthopedics (See Meet The Team).

Tendon Gliding Pose Detection

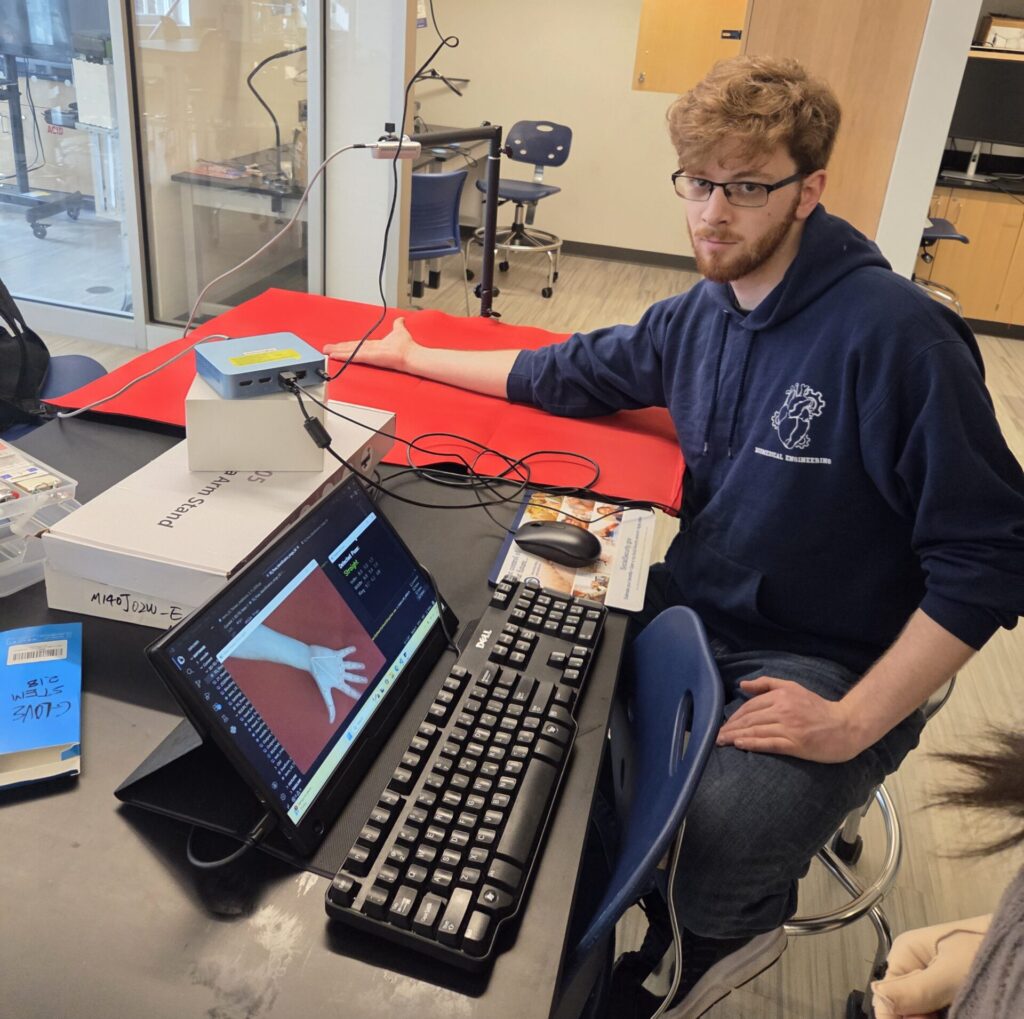

Jeremy testing the Tendon Gliding form recognition. His hand over a red pad under the realsense camera.

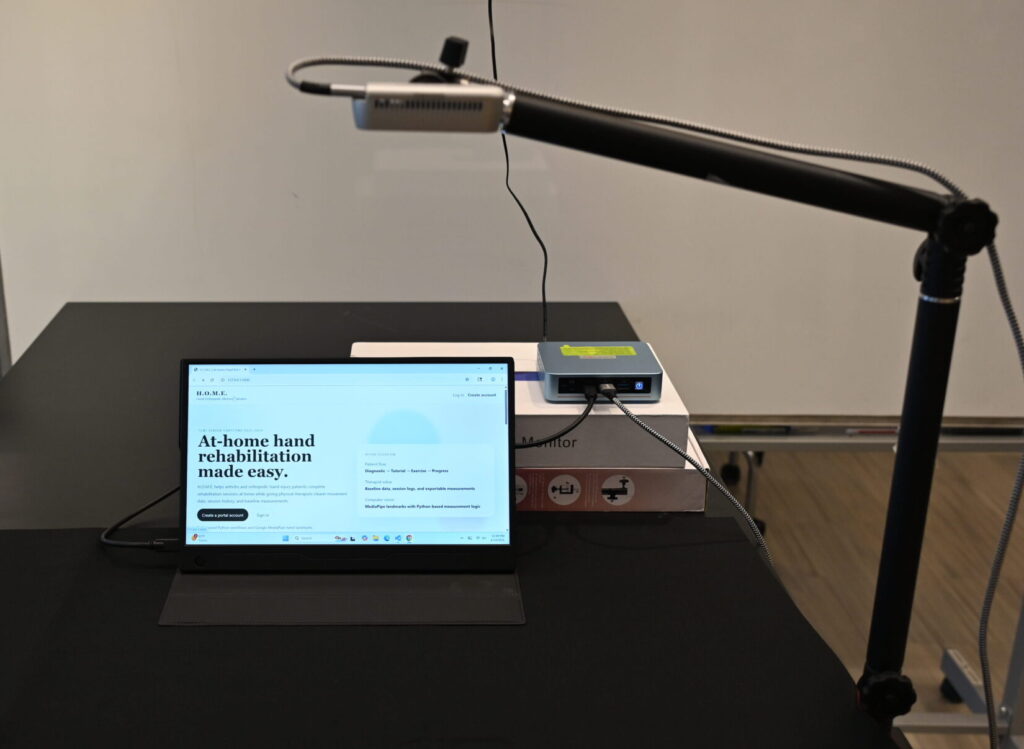

The setup of the prototype includes a monitor, Peladn Mini PC, and the camera with a stand. A non reflective (red) background is used in testing and modifying the script prior to camera setting adjustments.

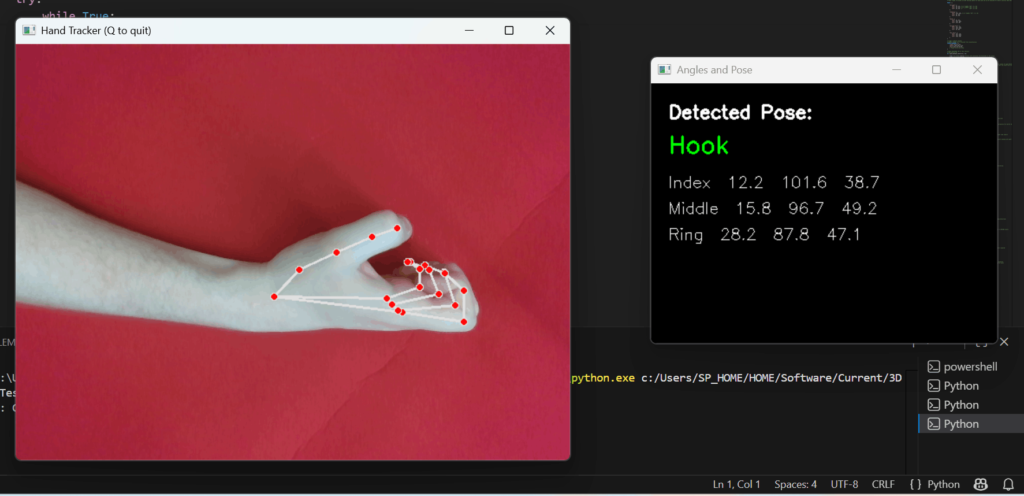

The H.O.M.E. application correctly identifies the hook position, one of the five poses in the Tendon Gliding Exercise.

Hook pose in camera view and reported pose in a separate window.
